Waste oil distillation machine

FOB Reference Price:Get Latest Price
$67,000.00 - $912,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Return Filter
Structure:
Vacuum
Model Number:
JNC
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Place of Origin:
Chongqing, China
Brand Name:
junneng
Power(W):
depend on product
Weight:
depend on product
Dimension(L*W*H):
Customer's Request
Certification:
ISO9001:2008
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Color Index:
≤2
Cetane Index:
52.6
oil yield:
diesel 86~88%,gasoline 5~6%,oil residue 6~8%
brand:
junneng
usage:
black engine oil,Crude oil,plastic oil and shale oil
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
STRONG WOODEN CASE
Port
chongqing port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Product Description

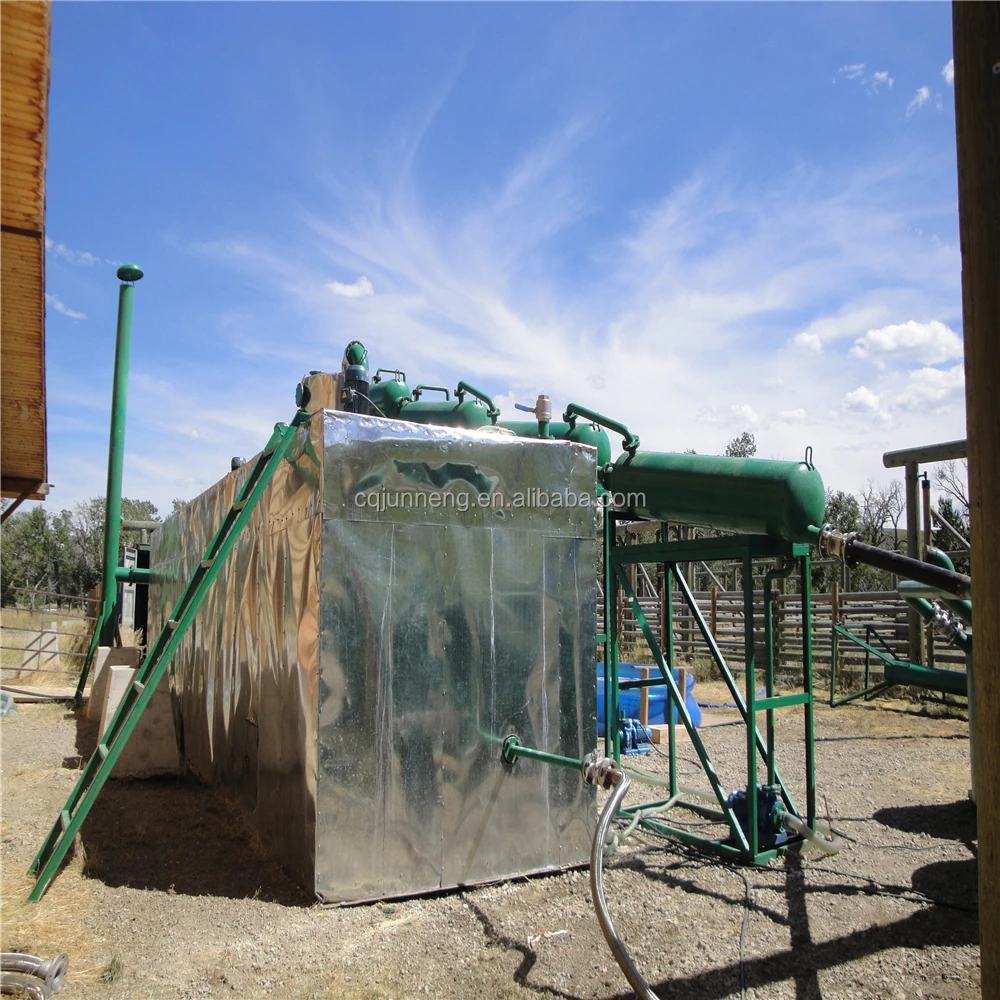

Waste oil distillation machine




1. overview

This machine can be used in black engine oil、Crude oil 、 plastic oil and shale oil, to get gasoline and diesel oil through distilled catalyst. Pumping into the heater with Waste oil , through the coal (or fuel oil, gas) heating to working temperature, the maximum working temperature about 410 degree and the required gasoline and diesel oil can be obtained after catalytic distillation. When the reaction of waste oil in reactor is complete, stop heating, and remove residue from the tank of bottom, then this machine can be used again.


2、Systems of equipment

1)Reaction tank: waste oil will be pumped into this tank from the primary filter .

2)Heating system: by burning coal or fuel oil to make the oil temperature up to setting value. This system equips with insulation system.

3)Catalytic system: waste oil reaches the predetermined temperature, via catalytic effect, and then the gaseous hydrocarbons will become gasoline and diesel composition.

4)Cooling system: gasoline and diesel after catalytic effect can be condensed into liquid materials.

5)Temperature control system: ensure that waste oil transform into gasoline and diesel oil, waste oil drying by distillation, can stop heating timely.

6)Exhaust gas handling system: a small amount of not liquefied gas via treated, can meet emission standards.

Item
unit
Technical data
Color Index
≤2
Density at 15 ℃
kg/m³
825
Ash
%(m/m)
<0.001
Kinematic Viscosity at 40 ℃
mm²/s
2.559
Cetane Index
52.6
Distillation

50% recovered at

95% recovered at
℃

℃
238

306

3、Index of oil after treatment:

1)Yield： Diesel oil: 86-88%, Gasoline oil: 5-6%,Oil residue: 6-8%.

2)Low-speed diesel engine can be used directly.

3)After processing the oil indicator


Certifications
Our company

Chongqing Junneng Machine Manufacturing Co., ltd. is a professional manufacturer engaged in the research, development, production, sale and service of waste oil recycling machine.we have Passed ISO & CE certification.8 Years Gold Supplier in Alibaba.USD100,000 trade Assurance.
